Quicktest plus ME



Computer-assisted tester for testing full-face masks, diving equipment and, optionally, buoyancy compensator devices at low and medium pressure



Data recording via a computer or gauges





Quicktest plus

Article numbers:see below

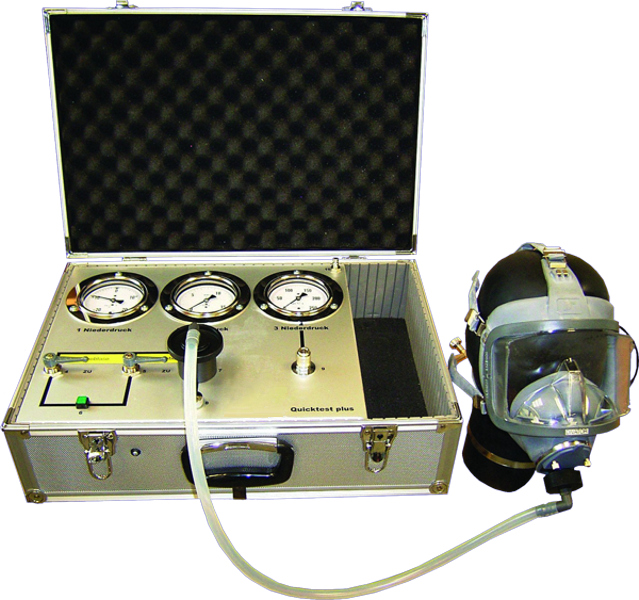

Quicktest plus ME with BCD testing upgrade



Why use Quicktest plus ME?

Quicktest plus ME makes it easy to efficiently and conveniently perform static as well as dynamic tests on diving gear and, with an optional upgrade, buoyancy compensator devices (BCD). In this context, it is important to keep in mind that connectors and the scope of required functional tests may vary from one make of diving equipment to another.

In order to maximize the quality of both equipment testing and data documentation, the tester features not only pressure gauges but also electronic pressure transducers.

While Quicktest plus ME is a manually operated tester, the electronic pressure transducers make it possible to record, analyse and document data in a computer-assisted manner using the MENZL Equipment Management and Testing program. However, the tester can also be used without a PC.

Quicktest plus ME has been optimized, in particular, for the following static tests:

  • 1st-stage medium pressure
  • diving regulator – demand valve (octopus)
  • BCD performance tests (BCD testing upgrade required)

The tester is designed for medium-pressure tests as well as tests on full-face masks and demand valves equipped with round-thread connectors, mouthpieces or euro couplings.

The tester is designed for medium-pressure tests as well as tests on full-face masks and demand valves equipped with round-thread connectors or euro couplings.

Adapters (sold separately) are available for testing a wide range of other pieces of equipment from various manufacturers and with different types of connectors.The inflatable dummy head guarantees a perfect fit of the masks to be tested.

BCD testing upgrade

If you buy the BCD testing upgrade, a low-pressure gauge, a BCD testing adapter and a BCD testing hose will be added to Quicktest plus ME, making it possible to perform leaktightness tests and safety-valve opening-pressure tests on BCDs.



QT plus – performing a test on a diving regulator QT plus – performing a test on a mask BCD testing adapter
Performing a test on a diving regulator Performing a test on a mask BCD testing adapter

Scope of possible tests

  • full-face masks – leak tightness
  • full-face masks – opening pressure
  • 1st stages – static medium pressure
  • 1st stages – medium-pressure rise
  • diving regulators – leak tightness
  • diving regulators – opening pressure
  • diving regulators – closing pressure

With BCD testing upgrade

  • BCDs – leak tightness
  • BCDs – opening pressure

Scope of delivery

  • Quicktest plus ME
  • dummy head (complete with filling valve and clamp)
  • mask testing hose
  • medium-pressure testing hose
  • sealing plug for 2nd-stage hose
  • diving-regulator connector without mouthpiece
  • medium-pressure inflator adapter
  • silicone spray
  • timer
  • power adapter and USB cable
  • MENZL Equipment Management and Testing program
  • manuals (tester and computer program)

Specifications

Dimensions (w x h x d): 550 x 200 x 370 mm
Weight: approx. 15 kg
Medium-pressure connector: euro coupling
Equipment connector: round thread EN (148-1)
Power supply: 230 V; 50 Hz
Power consumption: 100 W
Low-pressure transducer: ±30 mbar (accuracy class 0.5)
Low-pressure gauge: ±30 mbar (accuracy class 1.6)
Medium-pressure transducer 0-16 bar (accuracy class 0.5)
Medium-pressure gauge: 0-16 bar (accuracy class 1.0)

With BCD testing upgrade

Low-pressure transducer: 0-250 mbar (accuracy class 0.5)
Low pressure gauge: 0-250 mbar (accuracy class 1.6)

Article numbers

Quicktest plus 330-302
BCD testing upgrade 330-303
